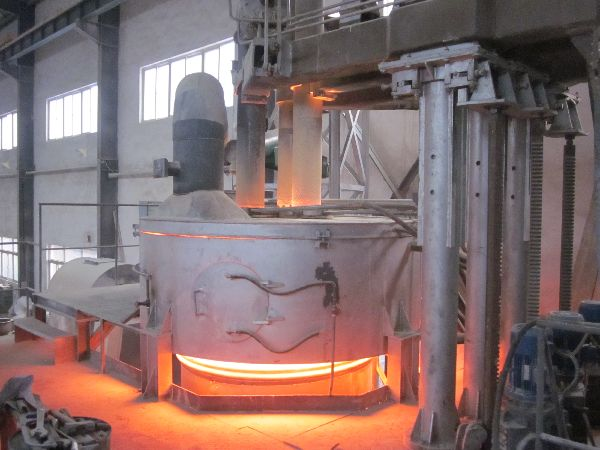

White Fused Alumina Furnace
White fused alumina is melted by high temperature which taken Industrial alumina powder as the raw material, the color is white, the hardness is higher than brown fused alumina, tenacity is lower. That can be used to produce grinding tool mainly grinding for high carbon steel, high speed steel, quenched steel and others, also can be grinding for polishing material and precision casting molding sand, spraying material, chemical contact agent, special ceramics, and advanced refractory materials etc.
Equipment features:
Semi-closed low hood furnace lid, the furnace lid has the observation device, automatic feed hole, large-cross water cooled cable, hydraulic driving, electrode lifting automatic adjustment, chromium copper electrode clamp material, stainless steel brake clamping, high voltage electric equipment adopts vacuum cabinet which equipped electric degree detecting and measuring for voltage, current, power. The furnace transformer adopts low loss energy saving transformer, low voltage electric adopts PLC programmable controller to control, the cooling water system has the pressure and water temperature monitoring, sound and light alarm. The advanced and complete centre centralized-control system can achieve integrated production line, smart control and alarm, protection system ensure production line operation safely and reliable, to provide possibility for data management networking for user.
Equipment including:
Furnace body, furnace tilting mechanism, furnace lid, electrode lifting device, short-net system, transformer, water cooling system, hydraulic system, low voltage system, high voltage system, automatic control system etc.
Tilting type
Optimized Production for Industrial Users
The White Fused Alumina Furnace is engineered specifically for industrial furnace manufacturers and metallurgical producers aiming to manufacture high-quality white fused alumina from industrial alumina powder. It targets enterprises requiring a highly durable abrasive material that exceeds the hardness of brown fused alumina yet maintains adequate tenacity for grinding tools. Typical users include manufacturers of grinding and polishing instruments catering to high carbon steel, high-speed steel, and refractory ceramic components. This furnace supports the production of abrasive materials essential for precision casting and chemical contact agents, thus fulfilling the demands of heavy industry sectors.
Advanced Mechanical Design and Control Features
This White Fused Alumina Furnace incorporates a tilting-type furnace body with a semi-closed low hood lid integrated with observation ports and automatic feed capability. A hydraulic-driven electrode lifting system allows precise adjustment for electric arc performance. The furnace's electrical components are housed within a vacuum cabinet ensuring high-voltage safety and real-time monitoring of voltage, current, and power parameters. An energy-efficient transformer minimizes losses, while the PLC programmable controller manages the low voltage electrical systems. The centralized intelligent control platform offers alarms, operational data logging, and automated protective measures. The cooling water system is designed with continuous pressure and temperature surveillance to secure thermal stability during melting processes.
Applications in Manufacturing and Material Processing
The furnace's capability to produce white fused alumina with superior hardness makes it indispensable for advanced abrasive applications across multiple sectors. It is widely employed in producing grinding tools for high carbon and quenched steels, polishing advanced ceramics, and processing precision casting molding sands. Additionally, it supports the preparation of spraying materials and chemical contact agents that require high-purity alumina input. This furnace is integrated into manufacturing environments emphasizing energy savings, process control accuracy, and compliance with industrial safety standards. Its reliable operation enhances yield quality and consistency in refractory material production lines and abrasive manufacturing plants worldwide.
Use Scenarios
High-Carbon Steel Abrasive Manufacturing Environment
Within the metallurgy sector focused on high carbon steel grinding tools, the White Fused Alumina Furnace assumes a vital role by producing abrasives characterized by superior hardness and controlled tenacity. Operating in this context demands a furnace that can reliably melt industrial alumina powder at consistent high temperatures with minimal energy consumption. The furnace’s advanced control systems ensure precise temperature and power regulation, essential for achieving consistent crystalline structure in alumina abrasives. This precision aligns the furnace’s output quality with stringent industry standards for grinding tools used in cutting and finishing high carbon steels, facilitating workflow continuity and optimizing downstream assembly and finishing processes.
Advanced Ceramic Polishing and Refractory Material Processing
In industries manufacturing special ceramics and advanced refractory materials, the White Fused Alumina Furnace is integral for producing abrasives and polishing powders with high purity and hardness specifications. The furnace’s intelligent control system guarantees consistent melting conditions and allows real-time adjustments to maintain product specifications, critical in environments requiring tight quality control. Its water cooling subsystem and vacuum electrical component housing ensure operational stability even under continuous heavy loads. The furnace seamlessly integrates into automated production lines, interfacing with material handling and quality control systems to enhance throughput while maintaining compliance with industrial safety and environmental regulations.
FAQ
What raw materials are used in the White Fused Alumina Furnace production process?
The White Fused Alumina Furnace uses industrial alumina powder as the core raw material. This high-quality input enables the furnace to produce durable white fused alumina abrasives that meet stringent industrial standards required for advanced grinding applications.
Can the White Fused Alumina Furnace be customized for specific operational requirements?
Yes, as experienced industrial furnace manufacturers, we offer customization options including furnace size and control configurations. Our engineering team adapts the White Fused Alumina Furnace features to align with customer specifications and production demands.
What installation and operational support does Xi'an Abundance provide for the furnace?
Xi'an Abundance Metallurgical Equipment supplies comprehensive services including installation, commissioning, and technical training. Our expert engineers ensure the induction furnace manufacturer-grade system integrates seamlessly, optimizing safety and maximizing performance from the start.
How does the furnace ensure safety and operational efficiency during use?
The furnace features a semi-closed lid with observation window, vacuum cabinet housing for high voltage components, and a PLC programmable controller managing low voltage systems. Energy-saving transformers, smart alarms, and water cooling systems maintain safe, efficient operation aligned with international metallurgical standards.
