The LF ladle refining furnace can be used for refining molten steel in primary furnaces (electric arc furnaces, converters). It is important metallurgical equipment for continuous casting and rolling. It has the functions of atmospheric arc heating, argon blowing and stirring, alloy feeding, temperature measurement, sampling and so on. It is excellent equipment for refining outside the furnace.
Equipment Composition

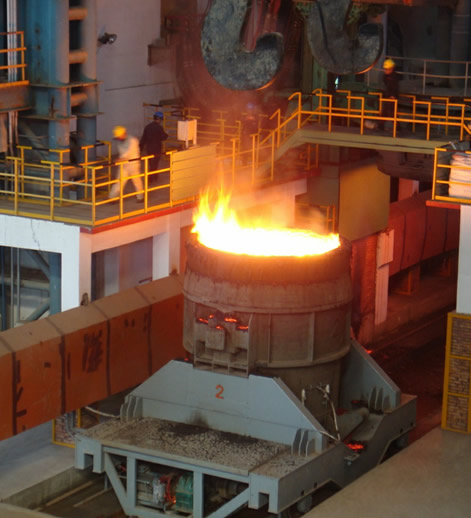

1. Ladle and ladle car;
2. Heating device (electrode control mode: manual control or microcomputer automatic control. Energy-saving short net and conductive cross arm are used);
3. Vacuum and detection system;
4. Hydraulic and control valve system;
5. Argon, oxygen, compressed air and cooling water systems;
6. Electrical control system (using PLC control and CRT image analog display);
7. High voltage power system;
8. High current circuit.
The combination of LF ladle refining furnace and EBT electric furnace can achieve short processes, improve steel quality, reduce production costs, and expand smelting varieties.
| Rated Capacity(t) | Furnace
Transformer |
Inner diameter of ladle upper opening(mm) | Graphite electrode diameter(mm) | Diameter of electrode distribution circle(mm) | Cooling water consumption(m2/h
) |
|
| Rated Capacity(MVA) | Secondary voltage（V） | |||||
| 15 | 2.0 | 185-150 | 2000 | 200 | 400 | 50 |
| 20 | 4.0 | 195-190 | 2200 | 300 | 560 | 90 |
| 25 | 4.5 | 200-120 | 2250 | 300 | 580 | 90 |
| 30 | 5.0 | 215-155 | 2450 | 300 | 580 | 120 |
| 40 | 6.3 | 220-160 | 2600 | 350 | 580 | 120 |
| 50 | 9.0 | 220-120 | 3000 | 400 | 700 | 150 |
| 60 | 10.0 | 270-170 | 3100 | 400 | 720 | 180 |
| 70 | 12.5 | 270-150 | 3280 | 400 | 720 | 180 |
| 80 | 15.0 | 270-150 | 3400 | 450 | 750 | 200 |
| 90 | 16.0 | 270-150 | 3500 | 450 | 750 | 200 |
| 100 | 18.0 | 300-180 | 3580 | 450 | 750 | 280 |
| 120 | 20.0 | 300-180 | 3680 | 500 | 800 | 300 |
Features
LF ladle furnace has many functions, such as heating and temperature rise, fine adjustment of alloy composition, argon stirring, rapid temperature measurement and sampling, desulfurization, impurity removal, wire feeding and composition adjustment, so as to reasonably match the whole steelmaking process and improve production continuity.
Customized LF Ladle Refining Furnace
We can design and manufacture the ladle refining furnaces according to the client’s required capacity, working hours, power supply, raw materials, and other related parameters. It can also be matched for users who already have the ladle refining furnace.
Custom Range
Annual capacity: 5T-50T
Diameter of cladding: 2000-4400MM
Rated transformer parameters：3-35MVA
Graphite electrode diameter：250-500MM
Service
What we can do:
Design and manufacture the LF ladle refining furnace according to the user’s requirement, including but not limited on the capacity, power supply, rated power, and so on. It can also be matched for clients who already ladle refining furnaces.
Experienced technical engineers to install and debug the LF ladle refining furnace.
Technical services and after-sale technical support.
Also can adjust the ladle refining furnace or develop and improve the capacity based on the user’s existing production line with professional engineers available for overseas installation guide and maintenance.
Description
Optimized Steel Refining for Industrial Use
The Ladle Refining Furnace is engineered to support metallurgical facilities utilizing electric arc furnace and converter technologies for molten steel refinement. Targeted at steel producers seeking improved control over steel chemistry and temperature, the unit enables refining processes outside the primary furnace to enhance production efficiency. Designed for plants requiring flexible refining capacities, it suits operators focused on alloy composition accuracy and quality consistency in demanding industrial environments, facilitating integration with existing steelmaking lines using advanced arc furnace methodologies.
Advanced Technical Features and Control Systems
This furnace incorporates atmospheric arc heating combined with argon blowing and stirring mechanisms to ensure homogeneous molten steel treatment. Equipped with precise temperature measurement, sampling ports, and options for manual or microcomputer-controlled electrode regulation, it delivers reliable and measurable refining performance. With transformer ratings from 3 to 35 MVA and customizable ladle sizes between 5 to 50 tons, the system integrates vacuum and detection capabilities alongside PLC-based electrical control systems featuring CRT displays. These technical specifications establish the unit as a technologically advanced arc melting furnace suited for complex metallurgical processes.
Industry Applications and Process Integration
The Ladle Refining Furnace caters to steelmaking operations requiring desulfurization, impurity removal, and precise alloy feeding prior to casting. Its role in producing high-grade steel involves enhancing process yields and reducing costs by shortening refining cycles, especially when paired with electric furnaces such as EBT. The equipment’s modular design supports retrofit projects and new installations globally, providing measurable improvements in steel cleanliness and temperature stability. This solution is critical for industrial furnace manufacturers aiming to deliver optimized refining performance within integrated steel production workflows.
Advantages
Structural and System Design Innovations
The Ladle Refining Furnace features a modular configuration comprising ladle cars, electrode-controlled heating devices, and comprehensive hydraulic and valve systems engineered for seamless integration with existing metallurgical infrastructure. Its design supports flexible operation modes, including both manual and automated electrode control, which accommodates varying plant automation levels. The robust construction from high-quality materials ensures compliance with industry safety standards governing arc furnace operations. Additionally, the integration of sophisticated control systems with real-time monitoring via PLC and CRT displays exemplifies advanced design principles favored by leading industrial furnace manufacturers.
Enhanced Performance and Operational Efficiency
This refining furnace delivers superior performance through rapid, energy-efficient arc heating and controlled argon stirring methods, ensuring uniform steel quality and consistent alloy composition. User-centric features include quick sampling capabilities and adaptable control interfaces that enhance operational precision and reduce downtime. The system’s ability to stabilize temperature and remove impurities effectively supports higher production yield and steel cleanliness, critical factors in industrial refining lines. It also offers comprehensive after-sales technical support, contributing to sustained usability and reliability in demanding steelmaking environments where electric arc furnace compatibility is essential.
Use Scenarios
Steel Refining Enhancement in Electric Arc Furnace Facilities
In steel production environments utilizing electric arc furnaces, the Ladle Refining Furnace functions as an essential supplementary refining unit. Its principal role is to further process molten steel extracted from the primary furnace, providing precise chemical adjustments and temperature stabilization through controlled argon stirring and alloy additions. This method improves steel uniformity and prepares the metal for final casting. The furnace’s compatibility with established electric arc furnace systems enables seamless workflow integration, optimizing refining time and enhancing overall process efficiency, critical to meeting strict industry standards in steel quality control.
Upgrading Steelmaking Lines with Modular Refining Solutions
For metallurgical plants aiming to upgrade or expand production capacity, this furnace serves as a scalable refining solution adaptable to varying batch sizes and power demands. Its customizable configurations and integration capabilities with vacuum and detection systems ensure compliance with evolving process requirements, including enhanced impurity removal and desulfurization. By linking directly to existing arc melting furnaces and electrical control systems, the unit supports automated process management and data monitoring, facilitating efficient workflow integration and reducing operational costs for industrial furnace manufacturers focused on innovation and process optimization.
About Us
Xi'an Abundance Metallurgical Equipment Co., Ltd. is a professional manufacturer of metallurgical equipment located in Xi'an High-tech Development Zone. With over 20 years of expertise, the company has grown into a leading enterprise in China’s electric furnace industry, specializing in design, manufacturing, installation, commissioning, and technical services. Over 200 of their electric furnaces operate worldwide, with 60% of products exported to more than 30 countries. The company has successfully delivered EPC projects in South Africa, Mexico, Egypt, Gabon, Mongolia, and India. Their expert team comprises more than 30 specialists and 200 engineers, experienced in green steelmaking, ferroalloy smelting, petroleum coke calcination, and related fields. Their product range includes electric arc furnaces (EAF), ladle refining furnaces (LF), submerged arc furnaces (SAF), AOD furnaces, converters, vacuum arc furnaces, and continuous casting machines. Xi'an Abundance Metallurgical Equipment is ISO9000 certified, holds six national patents, and serves a broad range of industries including metallurgy, automotive, aerospace, and hardware tools. They prioritize product quality, cost efficiency, and customer satisfaction through strict quality control and advanced design. Contact us now for your custom quote!
FAQ
1.What are the primary functions of the LF Ladle Refining Furnace?
The LF ladle refining furnace refines molten steel outside primary furnaces by providing atmospheric arc heating, argon stirring, alloy feeding, precise temperature measurement, and rapid sampling. These functions help improve steel quality, remove impurities, and enable controlled alloy composition, enhancing overall process efficiency in steel production.
2.Can the ladle refining furnace be adapted to different production scales?
Yes, the LF furnace can be customized in terms of annual capacity (5T-50T range) and transformer rating (3-35 MVA). This flexibility allows integration into various production lines and supports different steelmaking scales, making it suitable for diverse industrial requirements by industrial furnace manufacturers.
3.What support is available for installation and commissioning of the LF furnace?
Xi’an Abundance Metallurgical Equipment provides comprehensive support, including design, manufacturing, on-site installation, debugging, and technical assistance. Their services also cover maintenance and overseas project adaptation, ensuring smooth integration and operational reliability of the ladle refining furnace in diverse industrial environments.
4.How does the LF furnace improve steelmaking when paired with an electric arc furnace?
When integrated with an electric arc furnace (EAF), the LF ladle refining furnace shortens refining time and reduces production costs. It allows precise chemical control, desulfurization, and impurity removal outside the main furnace, stabilizing temperature and improving steel cleanliness. This synergy enhances production efficiency and steel quality consistently.
