Ferrosilicon alloy---main application
Ferrosilicon is an indispensable deoxidizer in the steel industry. Ferrosilicon is used for precipitation deoxidationand diffused deoxidation in steelmaking. Ferrosilicon is also used as an alloying agent in steelmaking. Add a certain amount of silicon into the steel can significantly improve the strength of steel, hardness and elasticity. Enhance the magnetic permeability of the steel, to reduce the hyteresis loss of the transformer steel.
Generally the steel contain 0.15%~0.35% silicon. The structural steel contains 0.40%~1.75% silicon. The tool steel contains 0.30%~1.80% silicon. The spring steel contain 0.40~2.80% silicon. The stainless acid resistant steel contains 3.40%~4.00% silicon. The heat-resistant steel contain 1.00%~3.00% silicon. The silicon steel contains 2%~3% silicon or more.
High silicon ferrosilicon or silicon alloy is used as the reducing agent of the production of low-carbon ferroalloy industry. Add ferrosilicon into cast iron can be as incubater of ductile iron, to prevent carbide formation, to promote the graphite separate out and balling, to improve the property of cast iron.
In addition, ferrosilicon powder in the beneficiation industry can be used as the suspended phase, in the electrode manufacturing industry can be used coatings for welding rod. High silicon ferrosilicon in the electrical industry can be used for the preparation of semiconductor, in the chemical industry can be used for the manufacture of silicone and etc.
In the steel industry, to produce 1ton steel need consumes about 3~5kg 75% grade ferrosilicon.

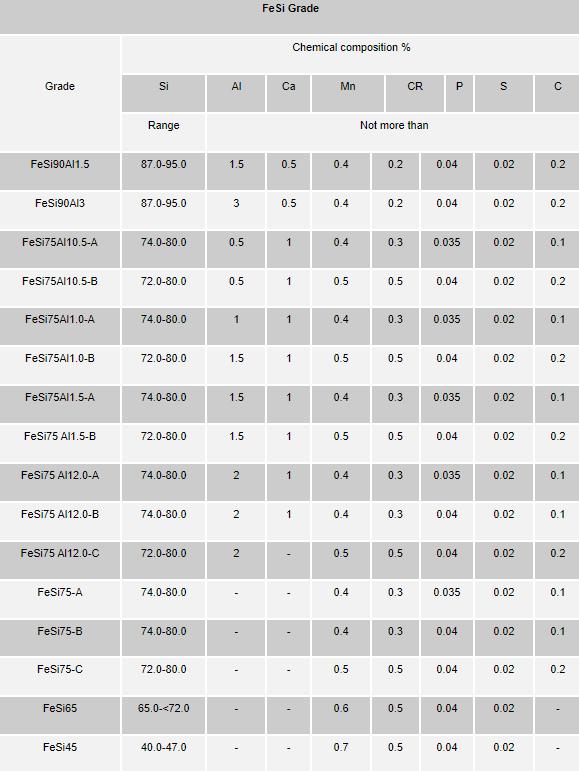

Ferrous Silicon alloy--Grade & Chemical composition
Ferrosilicon production processIn the production of ferroalloy, mostly rely on metal oxides ore reduction. This reduction need under higher temperature conditions, and consumes a lot of energy to achieve. As major equipment for of ferroalloy production, electric furnace must be efficient, energy-saving, has high utilization rate and etc.
Our company, based on many years’ experiences in steel making furnace manufacturing field, combined with the ferroalloy furnace production process characteristics, aiming at different ferroalloy species on the design of furnace type, make sure the appropriate furnace size, masonry technique, to ensure the furnace heat in high efficiency, and make the electricity energy inside furnace to convert into heat energy.
On the design of short net, with reference to national ferroalloy industry conferences related to new ideas and the corresponding parameters for different furnace design, under the condition of meet adequate current carrying capacity then reduce the resistance, reactance of the short net as much as possible , and increase the connection clamping force of short network. Strength the insulation reliability and reduce the accident rate. We provide technical support for the operation of the complete equipment.
Be aimed at the characteristics of silicon ferroalloy furnace’s installation, our company has stringent requirements for on-site construction management, on-site staff quality training aspects in the phase of raw materials purchasing, organize in careful to ensure the quality of the project.
The requirements of raw-material for production of ferrosilicon production Silica: The content of SiO should be not less than 96%, formation of slag impurities(AlO, MgO, CaO, etc) quantity should as small as possible, the content of PO cannot be more than 0.02%, should not contain clay impurities, the adsorption content should not be more than 5%, sufficient mechanical strength. Coke: should drying, sieving, particle size is 8-25mm, the granularity of coke should be screen out.Steel scrap: should be rustless, oil-free, non-cast iron turnings.

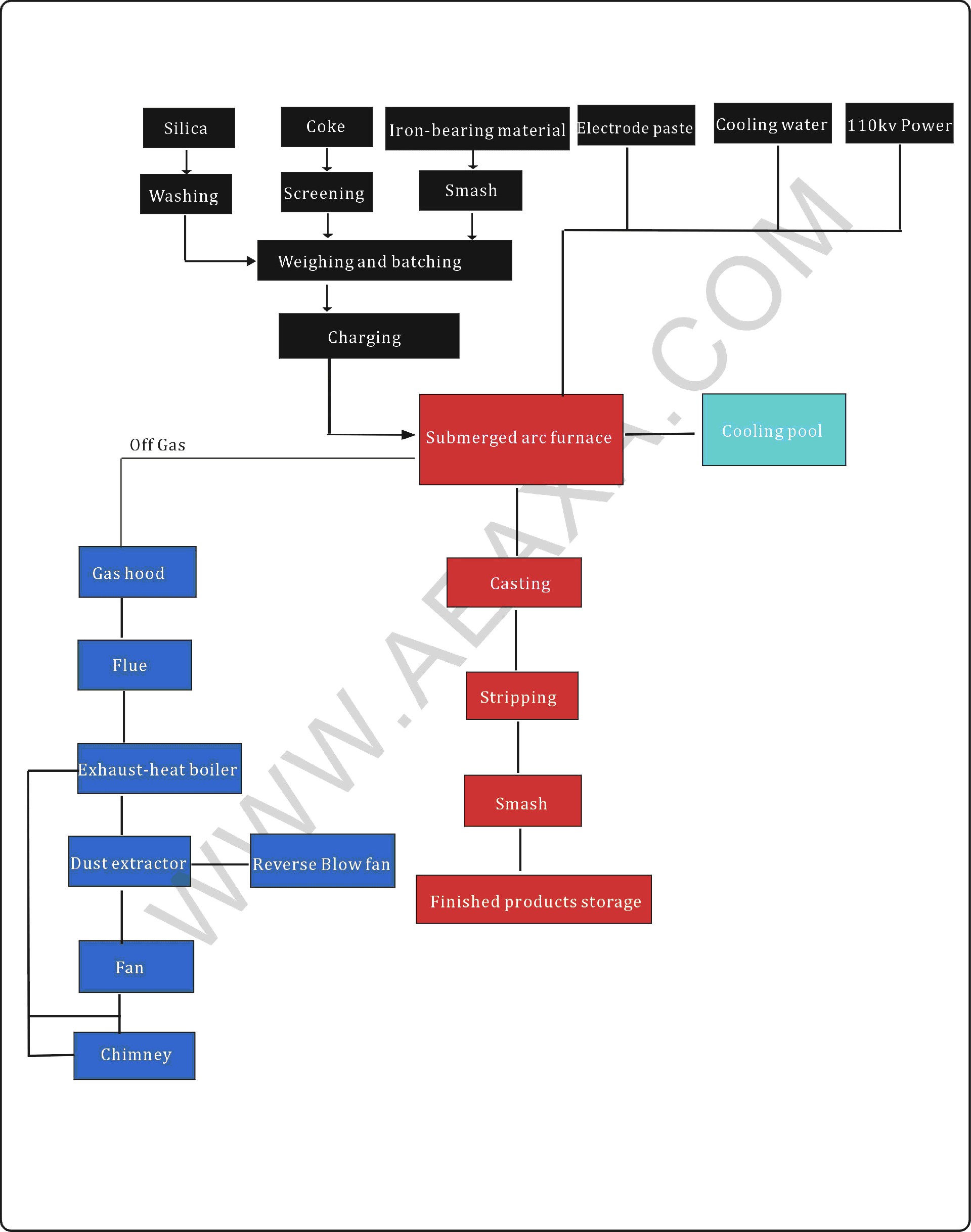

Simple operation process diagram
Ferroalloy smelting EPC
Based on our rich practical experience in the field of ferroalloy smelting and the safe operation records of more than 200 submerged arc furnace around the world,We provide customers with Metallic Silicon, ferrochrome, ferronickel, ferromanganese, ferrosilicon, silicon-chromium and other ferroalloy smelting, The specifications of submerged arc furnace are 6300KVA, 12500KVA, 16500KVA, 22500KVA, 33000KVA, 55000KVA, 68000KVA and so on,from process design to equipment production, commissioning and installation, and production operations, and have accumulated a reputation that satisfies customers.We provide comprehensive support from the grade of raw materials entering the furnace, raw material sintering, batching system, furnace area equipment (submerged arc furnace, ferroalloy refining furnace, etc.), tapping system, finished product finishing, dust removal system to cooling system, etc. Including engineering consulting; engineering and equipment design; equipment system integration; material and equipment supply; EPC general contracting; process management services and training; project management; production and operation services and other comprehensive services throughout the entire business chain.
Functional Role and Targeted Industrial Users

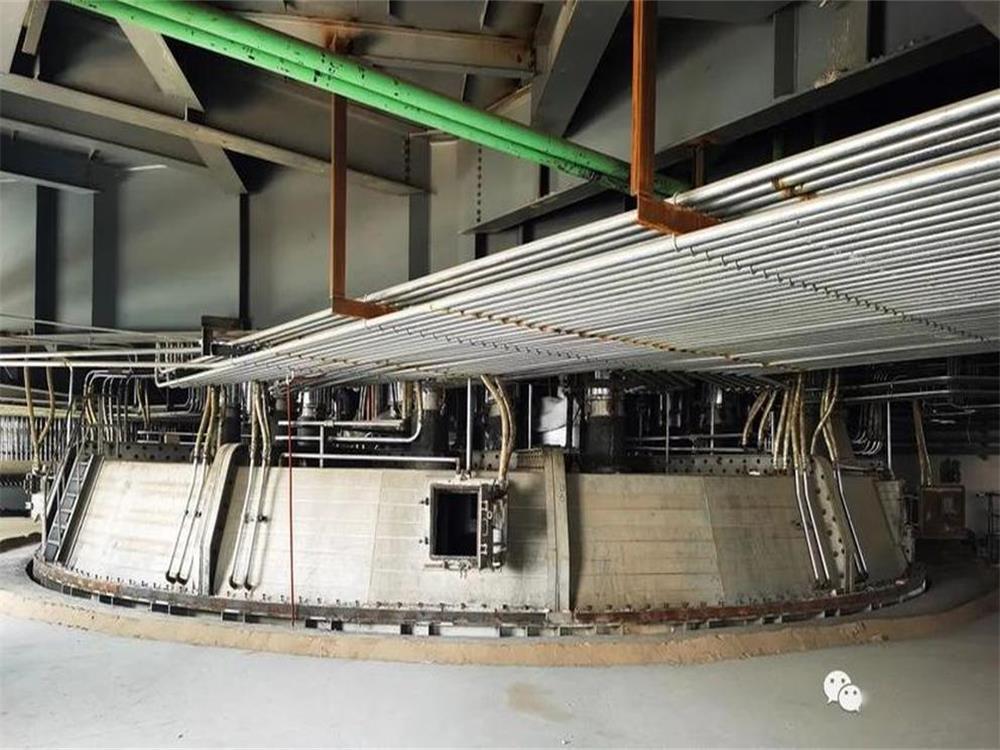

The Ferrosilicon furnace is engineered for metallurgical enterprises requiring efficient production of ferrosilicon alloys, essential for steel deoxidation and alloying. Target users include steel manufacturers and ferroalloy production plants focused on improving steel strength, elasticity, and magnetic properties. Our company, as a reputable industrial furnace manufacturer, provides this furnace primarily to operations needing reliable, high-capacity smelting solutions. The furnace supports integration within existing ferroalloy processing lines, interfacing seamlessly with batching, sintering, tapping, and dust collection subsystems to optimize workflow and output quality in large-scale industrial environments.
Advanced Technical Features and Measurable Specifications
Designed with high-efficiency electric arc furnace technology, the Ferrosilicon furnace employs a short net electrical design to maximize current capacity and reduce electrical resistance. This enhances energy conversion from electrical input to smelting heat, enabling stable operation at the high temperatures necessary for ore reduction. Specifications include furnace capacities ranging from 6300KVA to 68000KVA, customizable based on production scale and alloy type. The furnace masonry utilizes advanced insulating materials to reduce thermal loss while maintaining structural integrity under extreme operational stresses. Raw material requirements specify high-purity silica (≥96% SiO2) and controlled coke particle sizes, ensuring metallurgical quality and process consistency aligned with industry standards upheld by top industrial furnace manufacturers.
Industry Applications and Operational Value in Steelmaking
The Ferrosilicon furnace plays a pivotal role within the steelmaking industry by producing ferroalloys critical for improving the physical and chemical properties of steel and cast iron. It supports applications ranging from steel deoxidation, magnetic permeability enhancement, to ductile iron incubation. This furnace also facilitates the production of ferrosilicon powders for electrode coatings and semiconductor-grade materials, highlighting its versatility across metallurgical, electrical, and chemical sectors. Delivered as part of EPC packages, it ensures compliance with stringent quality and safety standards, contributing to reduced operational risks and improved process yields, thus generating measurable return on investment for factories specializing in ferroalloy smelting.
Use Scenarios
Integration in Large-Scale Ferroalloy Production Plants
Within large ferroalloy manufacturing facilities, the Ferrosilicon furnace functions as the core equipment for smelting ferrosilicon alloys used in steelmaking. Operating under stringent EPC frameworks, the furnace complies with strict environmental and safety regulations, supporting continuous high-volume production. Its short net design reduces power losses, crucial for maintaining operational efficiency in fluctuating load environments typical of industrial furnace manufacturers’ installations. The furnace integrates with automated material feeding, tapping, dust extraction, and cooling subsystems, streamlining workflow and reducing downtime. This scenario highlights its critical role in achieving process standardization and enhancing product uniformity in complex metallurgical plants.
Application in Specialty Steel Improvement and Cast Iron Production
In specialty steel and cast iron manufacturing, the Ferrosilicon furnace provides alloys that enhance mechanical and magnetic properties, essential for high-performance materials. The furnace supports smelting high-purity ferrosilicon inputs used for deoxidation and alloying in steel refinement and ductile iron incubation. Its design accommodates precise raw material specifications, enabling manufacturers to meet strict quality control and material compliance targets. By integrating seamlessly with existing steelmaking processes, the furnace helps optimize metallurgical workflows. The facility benefits from consistent thermal conditions and energy efficiency engineered by leading induction furnace manufacturers, aligning production outcomes with industry benchmarks for advanced alloy applications.
FAQ
What raw materials are essential for operating the Ferrosilicon furnace?
The Ferrosilicon furnace requires high-purity silica with ≥96% SiO2, coke sized 8-25mm, and clean, rust-free steel scrap. These materials ensure efficient smelting and high-quality ferrosilicon alloy production under strict processing conditions.
Can the Ferrosilicon furnace be customized for different production scales?
Yes, this furnace is available in various sizes and specifications, with submerged arc furnace capacities ranging from 6300KVA to 68000KVA. Customizations suit different ferroalloy types and production volumes, aligning with the needs of industrial furnace manufacturers.
What support is provided during installation and operation of the furnace?
Comprehensive technical assistance is offered throughout installation, commissioning, and operation phases. The company provides on-site training and expert guidance to ensure safe handling and optimal performance of the Ferrosilicon furnace in industrial settings.
How does the company ensure the long-term maintenance and reliability of the furnace?
Maintenance support includes detailed operation manuals, regular technical consultations, and prompt service interventions. With adherence to strict quality and safety standards, our industrial furnace manufacturers ensure high durability and stable performance for extended furnace operation.
