Characteristic:
1、Smelting temperature is flexible to be controlled, meet different steel grade production needs.
2、High heat efficiency, atmosphere inside furnace can be controlled.
3、Can remove the phosphorus, sulfur, oxygen and other impurities and improve steel quality.
4、Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5、Equipment is simple and shorter technological process.
Adoption of new technology:
1、Optimization design
2、Tubular water cooled furnace wall and furnace lid
Eccentric bottom tapping (EBT)
Copper-steel combined electrode arm
3、Cluster type large sectional area water cooled cables
Optimize large current system structure (energy-saving type)
Proportional valves hydraulic system
Basic level (PLC) + procedure level ( Industrial control computer) Control system
Frequency control technique
Network technique
Main Technical Specifications:
Description
Targeted Solutions for Metallurgical Facilities

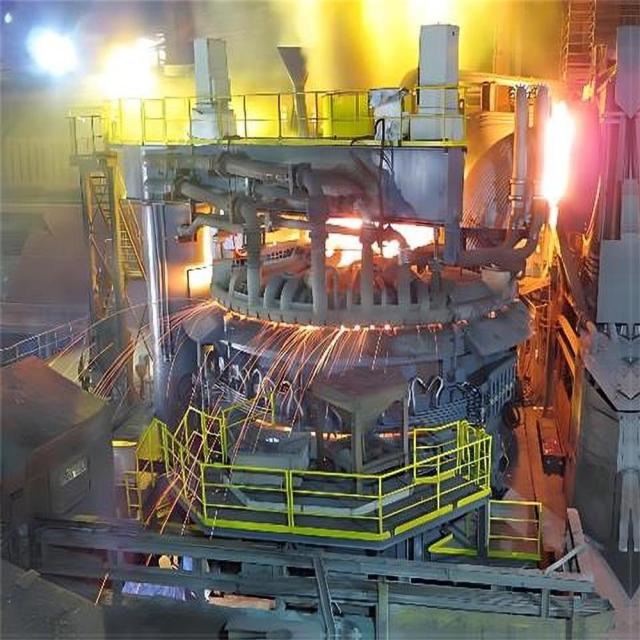

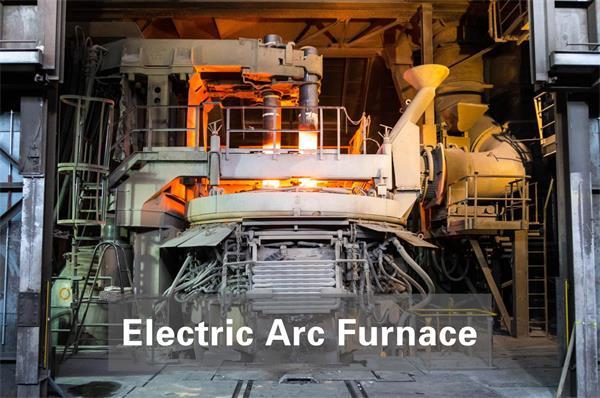

The electric arc furnace is engineered specifically for steel producers and metallurgical plants requiring versatile and efficient steelmaking. It is suitable for manufacturers of normal steel, high-quality carbon steel, and diverse alloy steels. This arc melting furnace supports precise temperature control and atmosphere regulation, facilitating the consistent production of different steel grades. Our solution delivers stable chemical composition control and high alloy recovery rates, meeting the demanding needs of foundries and ferrous alloy manufacturers seeking reliable and scalable industrial furnace technology.
Technical Advances Underpinning Reliable Operation
Featuring state-of-the-art components, the furnace incorporates tubular water-cooled walls and lids, combined copper-steel electrode arms, and cluster-type large-sectional area water-cooled cables. These innovations enhance thermal efficiency and electrode lifespan. The system integrates a proportional valve hydraulic mechanism and energy-saving large current infrastructure to optimize power consumption. PLC and industrial computer-based process control systems provide accurate monitoring and adaptable operation. This configuration improves impurity removal, including phosphorus, sulfur, and oxygen, ensuring enhanced steel quality while maintaining a simplified technological process and shorter production cycles.
Industrial Integration and Application Value
This arc furnace model is essential equipment in steelmaking factories, ferroalloy smelting, and foundry operations worldwide. It supports upgrading facilities aiming for improved efficiency and product uniformity. By enabling flexible smelting sequences and impurity control, it optimizes workflows and production outcomes across varied steel grades. The furnace's design supports integration into comprehensive plant systems, including ladle refining, vacuum oxygen decarburization, and continuous casting. Its proven track record delivers measurable ROI through energy savings and consistent output quality, positioning it as a core asset in industrial steelmaking processes.
Product Advantages
Innovative Structural and System Design Features

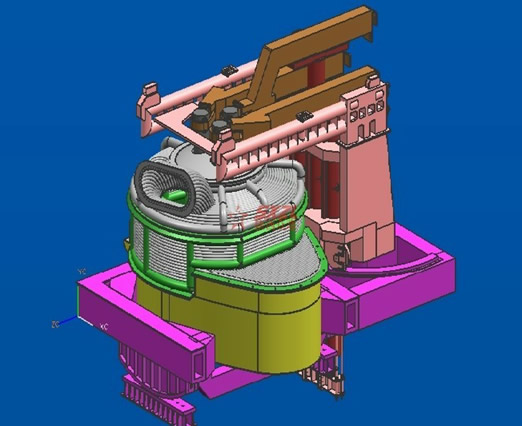

Our electric arc furnace stands out with modular, optimized design elements such as eccentric bottom tapping, which enhances molten metal handling efficiency, and a tubular water-cooled furnace structure that improves heat retention and durability. The copper-steel combined electrode arm design balances conductivity and mechanical strength, while the cluster-type water-cooled cables maintain stable current delivery during operation. The integrated PLC and industrial computer controls form a comprehensive control system, facilitating precise arc regulation and process automation. These combined design innovations reflect advanced engineering standards from experienced industrial furnace manufacturers.
Superior Performance and Operational Efficiency
This furnace ensures high thermal efficiency and controllable furnace atmosphere, enabling precise removal of phosphorus, sulfur, and oxygen impurities to enhance final steel quality. The simplified equipment layout and shorter technological processes reduce downtime and increase throughput. Automation via PLC systems allows fine-tuning of smelting parameters, improving alloy recovery stability and reducing operational variability. These performance characteristics translate into operational cost savings and improved product consistency. The design supports quick adaptation to evolving production requirements, responding effectively to diverse smelting tasks and steel grade specifications.
Use Scenarios
Steel Plant Modernization for Enhanced Production Efficiency
In large-scale steelmaking facilities, the electric arc furnace plays a pivotal role in upgrading outdated systems to improve energy efficiency and product output. Within this environment, it facilitates precise temperature and atmosphere control, critical for producing normal steel and specialized alloy grades that meet stringent quality standards. Its adaptable design ensures seamless integration with existing process lines, including ladle refining and vacuum oxygen decarburization. The furnace’s energy-saving systems and impurity removal capabilities support compliance with environmental regulations while optimizing smelting workflows in high-throughput operations.
Ferroalloy Production in Specialized Metallurgical Operations
In ferroalloy manufacturing, the arc furnace serves as a primary heat source for smelting various metals such as silicomanganese and calcium carbide. Operating in this demanding industrial context, the furnace’s advanced control systems ensure stable chemical composition and superior impurity extraction, critical for product purity and consistency. Its robust water-cooled infrastructure supports prolonged operation under high current loads, contributing to operational safety and lower maintenance frequency. Integration with continuous casting machines and downstream refining processes reinforces overall plant efficiency while guaranteeing compliance with metallurgical standards.
About Us
Xi'an Abundance Metallurgical Equipment Co., Ltd. is a professional manufacturer of metallurgical equipment located in the Xi'an High-tech Development Zone. With over 20 years of experience, we are a leading Chinese electric furnace manufacturer offering integrated services in design, manufacturing, installation, commissioning, and technical support. Our portfolio exceeds 200 operating electric furnaces globally, with 60% exported to more than 30 countries. Our export performance ranks among the top in the electric furnace industry for three consecutive years.
We have successfully completed EPC projects worldwide, including medium and low carbon ferrochromium in South Africa, copper casting in Mexico, aluminum smelting in Egypt, silicomanganese smelting in Gabon, steelmaking wire and bar in Mongolia, and brown corundum projects in India. Our expert team comprises over 200 engineers and technicians with solid expertise in green steelmaking and ferroalloy smelting, contributing to more than 200 successful projects globally.
Our product range includes Electric Arc Furnace (EAF), Ladle Refining Furnace (LF), Submerged Arc Furnace (SAF), Vacuum Oxygen Decarburization (AOD/VD/VOD) furnaces, Basic Oxygen Furnace (BOF), and Continuous Casting Machine (CCM) equipment. We maintain strict adherence to ISO9000 international quality standards and hold six national patents. Our commitment to cost-efficient technology, integrity, and comprehensive after-sales service supports metallurgical, forging, casting, military, automotive, aerospace, and other industrial applications.
Contact us now for your custom quote or to consult our experts for your next project.
FAQ
1.What powers the Electric Arc Furnace and how does it function?
The electric arc furnace operates using electricity as its heat source. It generates an electric arc between electrodes and the furnace charge, melting the materials efficiently. This method allows precise control of smelting temperatures, enabling production of various steel grades with high heat efficiency.
2.Can the Electric Arc Furnace be customized for specific industrial needs?
Yes, the arc furnace can be customized with advanced features such as tubular water-cooled walls, eccentric bottom tapping, and a proportional valves hydraulic system. Additionally, PLC and industrial computer controls allow tailored process management to meet diverse steelmaking requirements.
3.What installation support is provided by the manufacturer for the arc melting furnace?
Xi’an Abundance Metallurgical Equipment Co., Ltd. offers professional installation and commissioning services for the arc melting furnace. Their expert team ensures proper setup, operational testing, and staff training to guarantee reliable furnace performance and safety compliance.
4.How should maintenance be planned for the Electric Arc Furnace to ensure longevity?
Regular maintenance of the electric arc furnace should focus on electrode condition, cooling system efficiency, and control system calibration. Preventive inspections minimize downtime, while adherence to manufacturer guidelines helps sustain high recovery rates and product quality over the furnace lifecycle.
