Electro slag refining furnace is a kind of special smelting equipment which uses the heat generated by the remelting current to melt the consumable electrode inserted into the slag pool. After the metal melt drops are cleaned by the slag liquid, they crystallize into electroslag ingots in the water-cooled crystallizer.
Electro slag remelting is a method of smelting by using the resistance heat generated when the current passes through the slag as a heat source. Its main purpose is to purify metal and obtain steel ingot with uniform and dense crystalline structure. The electroslag remelted steel has high purity, very low sulfur content, fine dispersion of nonmetallic inclusions, smooth surface of ingot, uniform and dense crystallization, no white spots and annual ring segregation, uniform microstructure and chemical composition. The as-cast mechanical properties of electroslag steel can reach or exceed the index of the same steel forging. Therefore, electroslag remelting in large and medium-sized forgings, module blank production in a monopoly position, in the tool steel, maraging steel, two-phase steel billet, cold rolling roll electroslag steel has an advantage, electroslag melting casting shaped parts have a unique, in China's electroslag steel annual output has reached hundreds of thousands of tons. Electroslag furnace is an indispensable production equipment for special steel mills.
Electro slag metallurgy has three basic functions: heating, refining and sequential crystallization.
According to the form of support arm and ingot car, the electroslag furnace can be divided into: single-arm single ingot model, Atmosphere protection electroslag furnace,Vacuum electroslag furnace,single-arm double ingot model, double-arm ingot alternating type, double-arm rotating alternating fixed type, double-arm rotating alternating pumping type.
Electro slag refining furnace technical parameters table
Precision Metallurgical Refining for Advanced Steel Production

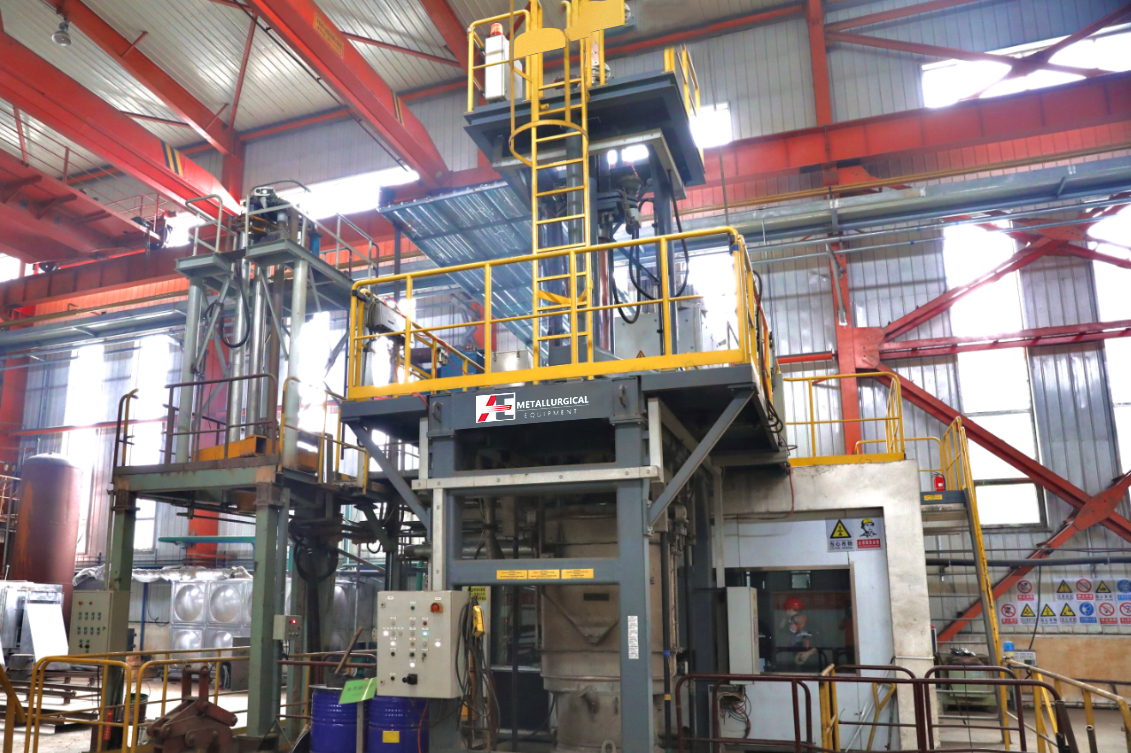

The Eelectro slag Refining Furnace (ESR) serves as specialized smelting equipment engineered for metallurgical industries targeting precise metal refinement. It is designed mainly for producers of high-grade steel ingots requiring enhanced mechanical properties and minimal impurities. This solution fits foundries, steel forging plants, and metallurgical engineers seeking reliable equipment from industrial furnace manufacturers that delivers consistent steel purity. By remelting consumable electrodes via resistance heat in slag, it supports uniform crystal formation, thus meeting stringent quality demands in steel production workflows.
Innovative Heating and Crystallization Technology
At the core of its technical design, the ESR furnace exploits electrical resistance heat generated as the current passes through a slag pool, melting the electrode. This process ensures metal droplets are refined by the slag before solidifying in a water-cooled crystallizer, delivering dense, fine-grained ingots. The furnace configuration includes multiple models like single-arm, vacuum, and atmosphere protection types, enabling precise adaptation to specific production needs. Its measurable output features include low sulfur content, removal of nonmetallic inclusions, and smooth surface quality without segregation, guaranteeing repeatable mechanical properties compliant with advanced steel standards.
Industrial Integration for Specialized Steel Manufacturing
The ESR furnace plays a pivotal role across industries engaged in producing large and medium-sized forged steel blanks, tool steels, and maraging steel billets. Its ability to improve ingot quality by uniform crystallization meets the demands of aerospace, automotive, and heavy machinery sectors requiring high-strength steel components. This equipment integrates seamlessly into metallurgical production lines, optimizing workflows for refined steelmaking and casting processes. Supported by experienced induction furnace manufacturers, the ESR furnace solution enhances product quality, improves yield, and reduces downstream processing costs.
Use Scenarios
Precision Steel Forging Applications
In forging industries focused on producing large and medium precision blanks, the ESR furnace refines steel ingots to meet stringent mechanical property requirements. Operating within controlled metallurgical plants, the furnace uses slag resistance heat to remove impurities and ensure uniform crystallization. This results in ingots with enhanced tensile strength and fatigue resistance essential for aerospace, automotive, and heavy equipment manufacturing. Its integration into forging workflows supports sequential refining and solidification processes, enabling consistent supply of high-quality blanks that comply with industry metallurgical standards.
High-Grade Tool Steel and Specialty Steel Production
In specialized steelmaking environments such as tool steel and maraging steel billet manufacturing, the ESR furnace provides critical refining capabilities to achieve low sulfur and inclusion content. These conditions improve tool life and performance in demanding mechanical applications. The furnace’s multiple configuration options accommodate vacuum or atmosphere protection processes, meeting compliance regulations for high-grade steel production. Positioned within advanced smelting lines, it enhances process control, offering metallurgical precision and quality assurance that directly influence downstream manufacturing reliability and part performance.
FAQ
What types of metals can the Eelectro slag Refining Furnace (ESR) process?
The Eelectro slag Refining Furnace (ESR) is designed for refining steel and special steel grades by remelting electrodes with slag resistance heat. It effectively purifies metals such as tool steel, maraging steel, and two-phase steels, producing ingots with low sulfur and minimal inclusions.
Can the ESR furnace be customized to match specific production requirements?
Yes, various models of the ESR furnace are available, including single-arm single ingot, double-arm alternating, vacuum, and atmosphere protection types. These options provide flexible configurations that suit different refining and crystallization processes in metallurgical production.
What installation and technical support does Xi’an Abundance Metallurgical Equipment provide?
Xi’an Abundance Metallurgical Equipment offers full installation, commissioning, and after-sales technical services worldwide. Their experienced engineers ensure proper setup and optimized furnace operation, supporting efficient use of the industrial furnace manufacturers products.
How does the ESR furnace ensure product quality and consistency?
Using electrical resistance heat through slag, the ESR produces steel ingots with uniform, dense crystalline structures and reduced nonmetallic inclusions. This method guarantees smooth ingot surfaces free from segregation, meeting strict mechanical standards for forging and precision steel applications.
